Research, Development and Innovation: Concepts and Technology Readiness

Overview

Funding bodies, tax authorities and statistical offices use precise definitions of research and development and of innovation. This week introduces the international definitions of the Frascati and Oslo manuals, the distinction between basic and use-inspired research and the technology readiness scale that many calls use [1, 2, 3].

Estimated study time: 6 to 8 hours.

Learning outcomes

By the end of the week, students are expected to apply the five Frascati criteria to decide whether an activity is research and development, to distinguish basic research, applied research and experimental development, to explain the Oslo Manual's definition of innovation, and to assess the technology readiness level of a computing result.

Study path

Week at a glance

flowchart LR
  RD["R&D: novel, creative, uncertain, systematic, transferable"] --> BR["Basic research"]
  RD --> AR["Applied research"]
  RD --> ED["Experimental development"]
  ED --> INN["Innovation: implemented new products or processes"]
  PQ["Pasteur's quadrant: use-inspired basic research"] --> AR
  TRL["Technology readiness levels 1 to 9"] --> INN

Lecture

What counts as research and development

The Frascati Manual of the OECD defines research and experimental development as creative and systematic work undertaken to increase the stock of knowledge and to devise new applications of available knowledge [1]. An activity counts as R&D only if it meets five criteria, at least in principle: It must be novel, creative, uncertain in its outcome, systematic and transferable or reproducible. The manual distinguishes three types of R&D. Basic research seeks new knowledge without a particular application in view. Applied research seeks new knowledge directed towards a specific practical aim. Experimental development draws on knowledge and experience to produce new products or processes or to improve existing ones.

The criteria matter in computing, where much work consists of software development. Writing software is R&D when it resolves scientific or technological uncertainty on a systematic basis, and it is not R&D when it applies known techniques in routine ways. The migration of an application to a new framework version is normally routine, while the design of a compiler optimisation whose effect cannot be predicted in advance may be experimental development.

What counts as innovation

The Oslo Manual, published by the OECD and Eurostat, defines an innovation as a new or improved product or process, or a combination of the two, that differs significantly from the unit's previous products or processes and that has been made available to potential users or brought into use by the unit [2]. It distinguishes product innovations from business process innovations. Innovation therefore requires implementation, while R&D does not: A research project can produce knowledge without any innovation, and an innovation can occur without any R&D, for example by adopting a technology that is new to the firm.

Pasteur's quadrant

The familiar opposition between basic and applied research suggests a single line from theory to practice. Stokes argued that two separate questions are involved: whether research seeks fundamental understanding and whether it is guided by considerations of use [4]. The answers define quadrants named after exemplary scientists. Bohr's quadrant contains pure basic research, Edison's quadrant contains pure applied research, and Pasteur's quadrant contains use-inspired basic research, which seeks fundamental understanding while being motivated by a practical problem. Much research in computer science, from cryptography to machine learning, sits in Pasteur's quadrant, which helps explain why the same work can be presented to academic and industrial funders.

Technology readiness

Technology readiness levels were developed at NASA to assess the maturity of technologies, and Mankins reviewed their history and use [3]. The scale has nine levels, from basic principles observed at level 1 to an actual system proven in an operational environment at level 9, as Figure 1.1 shows. The European Union adopted the scale for its research programmes, where calls often state the level that a project should start from and the level it should reach. TÜBİTAK has also used the increase in technology readiness as an element of its evaluation of 1001 proposals [5]. For computing research, the difficult step is often the move from validation in the laboratory to validation in a relevant environment, which requires real data, real users or real infrastructure.

Pause and reflect. Place your current thesis or project on the technology readiness scale. What evidence would move it up one level?

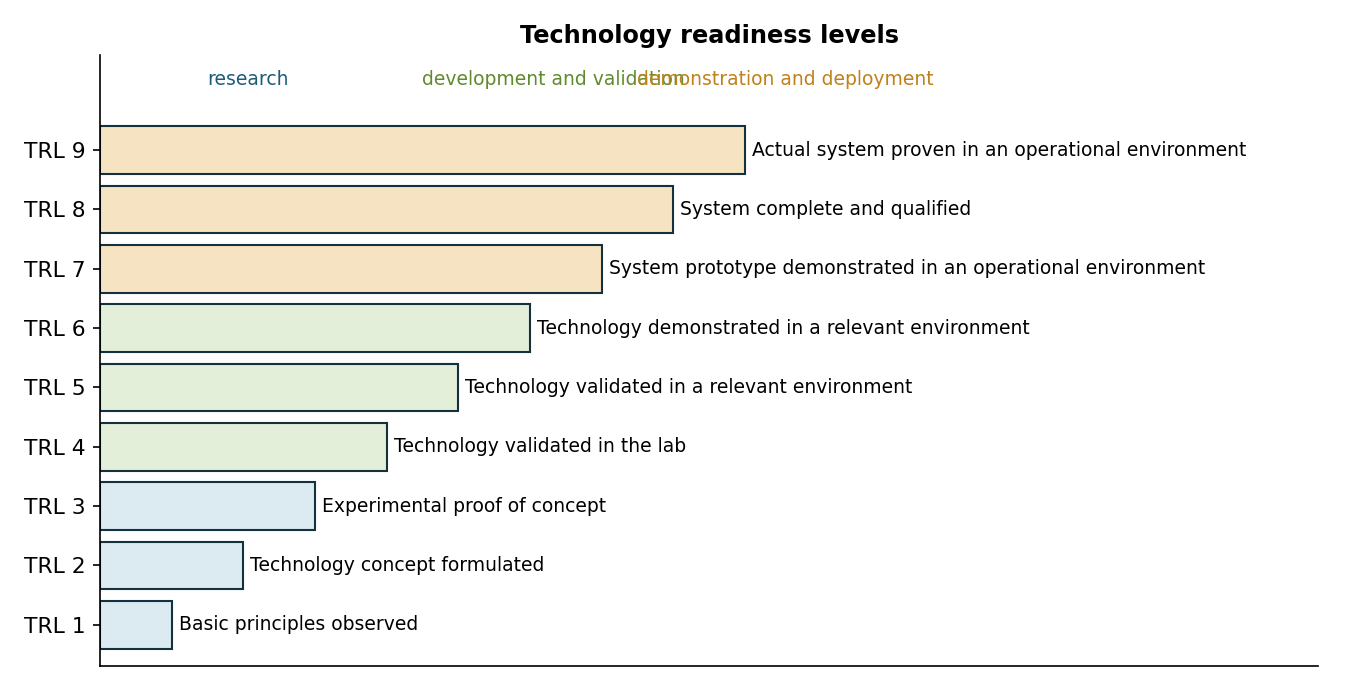

Figure 1.1. The nine technology readiness levels as used in European research programmes [3].

Interactive lab

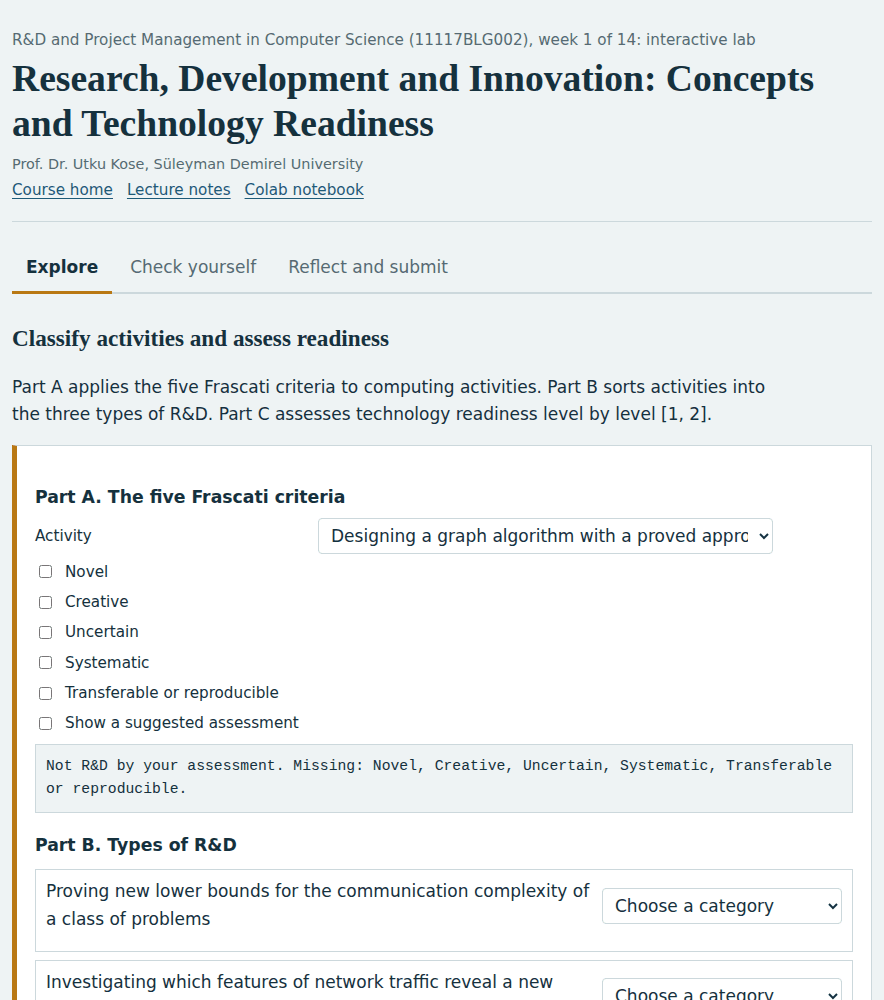

Part A applies the five Frascati criteria to computing activities. Part B sorts activities into the three types of R&D. Part C assesses technology readiness level by level [1, 3].

Open the interactive lab

Colab notebook

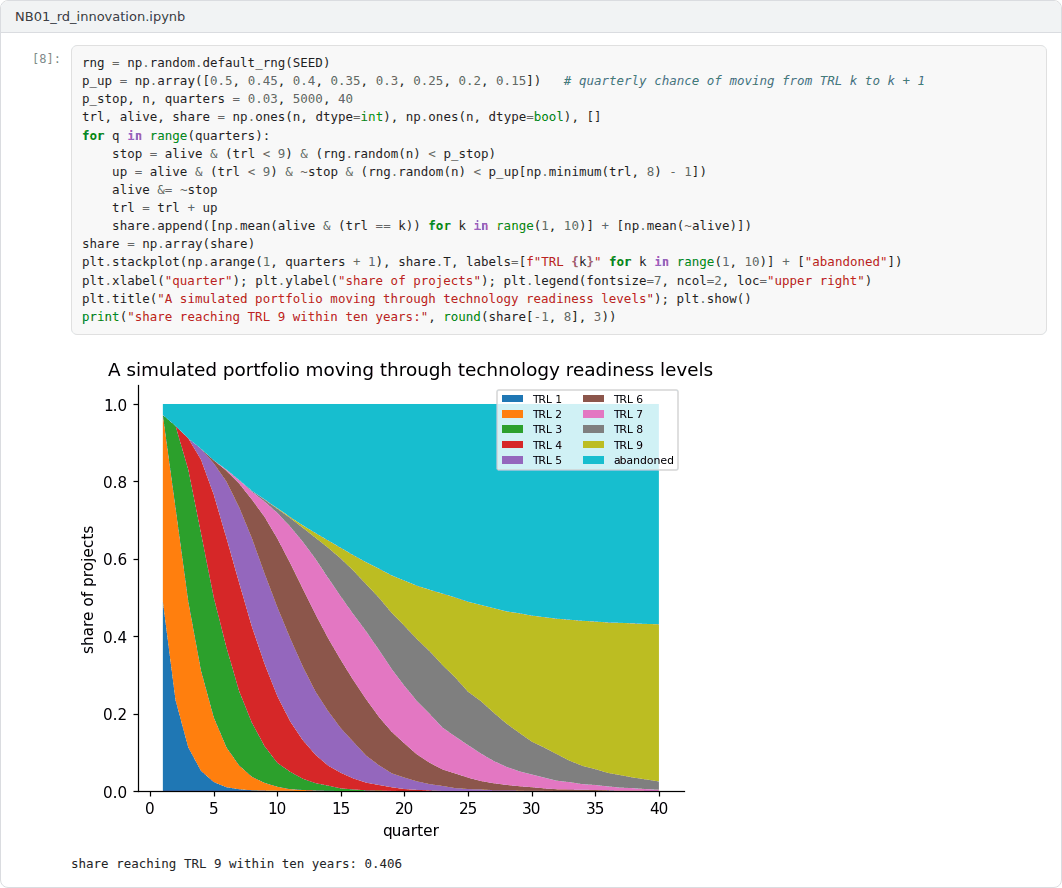

The notebook encodes the five Frascati criteria as a function, classifies a portfolio of computing activities and summarises the R&D budget by type [1].

Screenshots of the executed notebook:

Self-assessment and reflection

The lab contains a 6-question self-assessment with instant feedback and a confidence rating for each answer. A confident but wrong answer marks the first topic to revisit. The reflection prompts below are also available in the lab, where answers are saved in the browser and can be exported as a learning log.

1. Which part of your current work would pass all five Frascati criteria, and which part would not? Why does the distinction matter for funding?
2. Where would you place your field in Stokes's quadrants, and how does that affect whom you ask for funding?
3. What evidence would reviewers expect before accepting a claimed technology readiness level in your area?

Weekly task and submission

Write a one-page description of a project idea that you will develop throughout the course. Classify its activities with the Frascati criteria, place the project in Stokes's quadrants and state its starting and target technology readiness levels with the evidence required for each. Attach the notebook with both exercises completed.

The weekly task supports self-learning and builds a personal portfolio. When the course is followed with the instructor during an active semester, the task can be sent together with the exported learning log to utkukose@sdu.edu.tr or utkukose@gmail.com for evaluation.

Research and report assignment (optional)

R&D in Türkiye and the OECD. Using official statistics from the Turkish Statistical Institute and the OECD, compare the research and development intensity of Türkiye with three other countries and classify the differences with the concepts of the Frascati Manual [1]. Report the data sources and years precisely.

This research assignment is optional and supports self-learning. When the related weeks are followed within the course during an active semester, the report can be sent to utkukose@sdu.edu.tr or utkukose@gmail.com for evaluation. Unless the assignment states otherwise, a report has 1500 to 2500 words, follows the structure of an academic paper, cites at least six scholarly or official sources in square brackets and ends with a reference list.

References

[1] OECD (2015). Frascati Manual 2015: Guidelines for Collecting and Reporting Data on Research and Experimental Development. OECD Publishing. https://doi.org/10.1787/9789264239012-en

[2] OECD, & Eurostat (2018). Oslo Manual 2018: Guidelines for Collecting, Reporting and Using Data on Innovation (4th ed.). OECD Publishing. https://doi.org/10.1787/9789264304604-en

[3] Mankins, J. C. (2009). Technology readiness assessments: A retrospective. Acta Astronautica, 65(9-10), 1216-1223. https://doi.org/10.1016/j.actaastro.2009.03.058

[4] Stokes, D. E. (1997). Pasteur's Quadrant: Basic Science and Technological Innovation. Brookings Institution Press.

[5] TÜBİTAK (2020). ARDEB 1001 Programı: Proje değerlendirme sistemindeki yenilikler. https://tubitak.gov.tr/tr/duyuru/ardeb-1001-programi-proje-degerlendirme-sistemindeki-yenilikler
